Service utilization analysis¶

Note: RISE_THRESHOLD is automatically calculated as 1 / DIP_THRESHOLD (default: ~1.11) to mirror dip detection symmetrically.

For high-sensitivity analysis (detecting smaller disruptions): - MADS_THRESHOLD = 1.0 - DIP_THRESHOLD = 0.95 (5% drop) - SMOOTH_K = 5 (less smoothing)

For conservative analysis (only major disruptions): - MADS_THRESHOLD = 2.0 - DIP_THRESHOLD = 0.80 (20% drop) - SMOOTH_K = 9 or 11 (more smoothing)

For faster runtime: - RUN_DISTRICT_MODEL = FALSE - RUN_ADMIN_AREA_4_ANALYSIS = FALSE - CONTROL_CHART_LEVEL = "admin_area_2"

Primary Inputs¶

1. M2_adjusted_data.csv (main data source)
2. Output from Module 2 (Data Quality Adjustments)
3. Contains adjusted service counts with different completeness assumptions

4. Required columns: facility_id, indicator_common_id, period_id, count_final_none, count_final_completeness, count_final_both

5. M1_output_outliers.csv

6. Output from Module 1 (Data Quality Assessment)
7. Contains outlier_flag to identify and exclude anomalous data points

8. Required columns: facility_id, indicator_common_id, period_id, outlier_flag

9. hmis_ISO3.csv (used only for geographic lookup)

10. Raw HMIS file used solely to extract facility_id → admin_area_1 mapping
11. Required because M2_adjusted_data.csv does not include admin_area_1
12. Required columns: facility_id, admin_area_1

Data Requirements¶

• Temporal coverage: Minimum 12 months of data for seasonal modeling
• Data completeness: Missing months are filled using interpolation
• Geographic completeness: Data at specified administrative levels
• Count data: Non-negative integer counts (predictions are bounded at zero)

Outputs¶

1. Control Chart Results¶

M3_chartout.csv

Purpose: Contains flagged disruptions from the control chart analysis

Columns:

• admin_area_*: Geographic identifier (level depends on CONTROL_CHART_LEVEL)
• indicator_common_id: Health service indicator code
• period_id: Time period in YYYYMM format
• tagged: Binary flag (1 = disruption detected, 0 = normal)

Use: Identifies which months require further investigation for each indicator-geography combination

M3_service_utilization.csv

Purpose: Pass-through copy of adjusted data for visualization

Source: Direct copy of M2_adjusted_data.csv

Use: Provides baseline data for plotting actual service volumes

M3_memory_log.txt

Purpose: Tracks memory usage throughout execution

Use: Diagnostics for performance optimization and troubleshooting

2. Disruption Analysis Results¶

M3_disruptions_analysis_admin_area_1.csv (National level - always generated)

Columns:

• admin_area_1: Country name
• indicator_common_id: Health service indicator
• period_id: Time period (YYYYMM)
• count_sum: Actual service volume (sum across all facilities)
• count_expect_sum: Expected service volume (sum of predictions)
• count_expected_if_above_diff_threshold: Value for plotting (expected if |difference| > DIFFPERCENT, otherwise actual)

M3_disruptions_analysis_admin_area_2.csv (Province level - always generated)

Additional column: admin_area_2 (province/region name)

Same structure: As admin_area_1 file but disaggregated by province

M3_disruptions_analysis_admin_area_3.csv (District level - conditional)

Generated when: RUN_DISTRICT_MODEL = TRUE

Additional columns: admin_area_2, admin_area_3

Same structure: As above but disaggregated by district

M3_disruptions_analysis_admin_area_4.csv (Ward level - conditional)

Generated when: RUN_ADMIN_AREA_4_ANALYSIS = TRUE

Additional columns: admin_area_2, admin_area_3, admin_area_4

Warning: Very large file size for countries with many wards

3. Shortfall/Surplus Summary Files¶

M3_all_indicators_shortfalls_admin_area_*.csv (one for each geographic level)

Purpose: Pre-calculated shortfall and surplus metrics for reporting

Common columns:

• Geographic identifier(s): admin_area_*
• indicator_common_id: Health service indicator
• period_id: Time period (YYYYMM)
• count_sum: Actual service volume
• count_expect_sum: Expected service volume
• shortfall_absolute: Absolute number of missing services (if negative disruption)
• shortfall_percent: Percentage shortfall relative to expected
• surplus_absolute: Absolute number of excess services (if positive disruption)
• surplus_percent: Percentage surplus relative to expected

Note: If optional geographic levels are disabled, empty placeholder files are created for compatibility with downstream processes.

Temporary Files (Automatically Cleaned)¶

During execution, the module creates temporary batch files for memory management: - M3_temp_controlchart_batch_*.csv - M3_temp_indicator_batch_*.csv - M3_temp_province_batch_*.csv - M3_temp_district_batch_*.csv - M3_temp_admin4_batch_*.csv

These are automatically deleted upon successful completion. If the script crashes, these files may remain and will be cleaned up on the next run.

Purpose: Identifies anomalies in service utilization using robust regression and MAD-based control limits.

Inputs:

• panel_data: Time series data for a specific indicator-geography combination
• selected_count: Column name containing service volume counts to analyze

Process:

1. Fits a robust linear model (using MASS::rlm()) with seasonal controls and time trends
2. Applies rolling median smoothing to predicted values to reduce noise
3. Calculates residuals and standardizes them using Median Absolute Deviation (MAD)
4. Applies rule-based tagging logic to identify different disruption types
5. Flags recent months automatically to ensure timely detection

Outputs:

• count_predict: Predicted service volume from robust regression
• count_smooth: Smoothed predictions using rolling median
• residual: Difference between actual and smoothed values
• robust_control: Standardized residual (residual/MAD)
• tagged: Binary flag (1 = disruption detected, 0 = normal variation)
• Additional flags: tag_sharp, tag_sustained, tag_sustained_dip, tag_sustained_rise, tag_missing

Key features:

• Handles missing data gracefully with interpolation
• Uses robust regression to minimize influence of outliers
• Employs multiple disruption detection rules for different patterns
• Ensures non-negative predictions (counts cannot be negative)

Panel Regression Models¶

The disruption analysis uses panel regression models (fixest::feols()) at multiple geographic levels. Separate regressions are run for each geographic unit at each level, with clustered standard errors to account for within-area correlation.

Country-wide Model (Admin Area 1):

count ~ date + factor(month) + tagged

Single regression across all facilities, clustered standard errors at district level (admin_area_3)

Province-level Models (Admin Area 2):

count ~ date + factor(month) + tagged

Separate regression run for each province, clustered standard errors at district level

District-level Models (Admin Area 3 - optional):

count ~ date + factor(month) + tagged

Separate regression run for each district, clustered standard errors at ward level (admin_area_4)

Ward-level Models (Admin Area 4 - optional):

count ~ date + factor(month) + tagged

Separate regression run for each ward/finest unit (no clustering)

Supporting Functions¶

mem_usage(msg): Tracks and logs memory consumption throughout execution

Data processing:

• Batch processing with disk-based temporary files for memory efficiency
• Efficient data.table operations for large datasets
• Progressive aggregation and merging strategies

Service volumes are aggregated at the specified geographic level (configurable via CONTROL_CHART_LEVEL). The pipeline removes outliers (outlier_flag == 1), fills in missing months, and filters low-volume months (<50% of global mean volume).

A robust regression model estimates expected service volumes per indicator × geographic area (panelvar). A centered rolling median is applied to smooth the predicted values. Residuals (actual - smoothed) are standardized using MAD. Disruptions are identified using a rule-based tagging system.

Disruption Detection Rules¶

Each rule is controlled by user-defined parameters, allowing customization of the sensitivity and behavior of the detection logic:

Sharp disruptions: Flags a single month when the standardized residual (residual divided by MAD) exceeds a threshold:

• Parameter: MADS_THRESHOLD (default: 1.5)
• Lower values make the detection more sensitive to sudden spikes or dips.

Sustained drops: Flags a sustained drop if:

• Three consecutive months show mild deviations (standardized residual ≥ 1 but < MADS_THRESHOLD), and
• The current month has a standardized residual ≥ 1.5 (hardcoded threshold).

This captures slower, compounding declines.

Sustained dips: Flags periods where the actual volume falls consistently below a defined proportion of expected volume (smoothed prediction):

• Parameter: DIP_THRESHOLD (default: 0.90)
• Users can adjust this to detect deeper or shallower dips (e.g., 0.80 for a 20% drop).

Sustained rises: Symmetric to dips, flags periods of consistent overperformance:

• Parameter: RISE_THRESHOLD (default: 1 / DIP_THRESHOLD, e.g., 1.11)
• Users can adjust this to detect upward surges in volume.

Missing data: Flags when 2 or more of the past 3 months have missing (NA) or zero service volume.

• Fixed rule.

Recent tail override: Automatically flags all months in the last 6 months of data to ensure recent trends are reviewed, even if model-based tagging is not conclusive.

• Fixed rule.

Final flag: A month is assigned tagged = 1 if any of the following conditions are met:

• tag_sharp == 1
• tag_sustained == 1
• tag_sustained_dip == 1
• tag_sustained_rise == 1
• tag_missing == 1
• It falls within the most recent 6 months (last_6_months == 1)

Robust Regression Model¶

Model fitting:

If ≥12 observations and >12 unique dates:

If only ≥12 observations:

If insufficient data: use the median of observed values.

Apply rolling median smoothing to predictions:

• Parameter: SMOOTH_K (default: 7, must be odd)
• Larger SMOOTH_K smooths more; smaller retains more variation.

Calculate residuals:

Standardize residuals using MAD:

Disruption Analysis Regression Models¶

Once anomalies are identified and saved in M3_chartout.csv, the disruption analysis quantifies their impact using regression models. These models estimate how much service utilization changed during the flagged disruption periods by adjusting for long-term trends and seasonal variations.

For each indicator, we estimate:

where: - \(Y_{it}\) is the observed service volume, - \(\text{date}\) captures time trends, - \(\text{month}_m\) controls for seasonality, - \(\text{tagged}\) is the disruption dummy (from the control chart analysis), - \(\epsilon_{it}\) is the error term.

The coefficient on tagged (\(\beta_2\)) measures the relative change in service utilization during flagged disruptions. Separate regressions are run at the national, province and district levels to assess the impact across different geographic scales.

Country-wide Regression¶

The country-wide regression estimates how service utilization changes at the national level when a disruption occurs. Instead of analyzing individual provinces or districts separately, this model considers the entire country's data in a single regression. Errors are clustered at the lowest available geographic level (lowest_geo_level), typically districts.

Model specification:

Where: - \(Y_{it}\) = volume (e.g., number of deliveries) - \(\text{date}\) = time trend - \(\text{month}_m\) = controls for seasonality (factor variable) - \(\text{tagged}\) = dummy for disruption period - \(\epsilon_{it}\) = error term, clustered at the district level (admin_area_3)

Province-level Regression¶

The province-level disruption regression estimates how service utilization changes at the province level when a disruption occurs. Unlike the country-wide model, this approach runs separate regressions for each province to capture regional variations.

Model specification (run separately for each province):

Where: - \(Y_{it}\) = volume (e.g., number of deliveries) - \(\text{date}\) = time trend - \(\text{month}_m\) = controls for seasonality (factor variable) - \(\text{tagged}\) = dummy for disruption period - \(\epsilon_{it}\) = error term, clustered at the district level

District-level Regression¶

The district-level disruption regression estimates how service utilization changes at the district level when a disruption occurs. This approach runs separate regressions for each district to capture localized variations.

Model specification (run separately for each district):

Where: - \(Y_{it}\) = volume (e.g., number of deliveries) - \(\text{date}\) = time trend - \(\text{month}_m\) = controls for seasonality (factor variable) - \(\text{tagged}\) = dummy for disruption period - \(\epsilon_{it}\) = error term, clustered at the ward level (admin_area_4) if multiple clusters available

Regression Outputs¶

Each regression level produces the following outputs:

Expected values (expect_admin_area_*): Predicted service volume adjusted for seasonality and trends.

Disruption effect (b_admin_area_*): Estimated relative change during disruptions:

Trend coefficient (b_trend_admin_area_*): Reflects long-term trend.

• Positive = increasing service use
• Negative = declining service use
• Near zero = stable trend

P-value (p_admin_area_*): Measures statistical significance of the disruption effect.

• Lower values = stronger evidence of true disruption

Statistical Methods Used¶

Robust regression (MASS::rlm):

• Uses iteratively reweighted least squares (IRLS)
• Minimizes influence of outliers and extreme values
• More resistant to model misspecification than ordinary least squares
• Default: Huber weighting with maximum 100 iterations

MAD (Median Absolute Deviation):

• Robust measure of scale/variability
• Formula: MAD = median(|x - median(x)|)
• More resistant to outliers than standard deviation
• Used to standardize residuals for anomaly detection

Panel regression (fixest::feols):

• Fixed-effects estimation with clustered standard errors
• Accounts for within-group correlation in errors
• More efficient than traditional panel regression packages
• Handles unbalanced panels gracefully

Geographic clustering:

• Regressions use clustered standard errors at the lowest available geographic level
• This accounts for within-area correlation in service delivery patterns
• Example: Country-wide model clusters by district, province model clusters by district
• Prevents underestimation of standard errors and false positives

Step 1: Prepare the Data¶

• Load adjusted service volumes from M2_adjusted_data.csv.
• Load outlier flags from M1_output_outliers.csv.
• Load raw HMIS only to extract facility_id → admin_area_1 lookup (then discard).
• Merge outlier flags into adjusted data by facility × indicator × month.
• Remove rows flagged as outliers (outlier_flag == 1).
• Create a date variable from period_id and extract year and month.
• Create a unique panelvar for each geographic area-indicator combination.
• Aggregate data to the specified geographic level by summing count_model (based on SELECTEDCOUNT) by date.
• Fill in missing months within each panel to ensure continuity.
• Fill missing metadata using forward and backward fill.

Step 2: Filter Out Low-Volume Months¶

• Compute the global mean service volume for each panelvar.
• If count_original is <50% of the global mean, drop the value by setting it to NA.

Step 3: Apply Regression and Smoothing¶

Estimate expected service volume using robust regression, then smooth the predicted trend.

• Fit robust regression (rlm) for each panel using one of three model specifications based on data availability.
• Apply rolling median smoothing to predictions using window size SMOOTH_K.
• If smoothing is not possible (e.g., at series edges), fallback to model predictions.
• Calculate residuals: actual - smoothed
• Standardize residuals using MAD

This standardized control variable is used to detect anomalies in Step 4.

Step 4: Tag Disruptions¶

Apply rule-based tagging to identify potential disruptions. Each rule is governed by user-defined parameters that can be tuned for sensitivity:

• Sharp disruptions: Tag if |robust_control| ≥ MADS_THRESHOLD
• Sustained drops: Tag if 3 consecutive months have mild deviations (residual ≥ 1 but < MADS_THRESHOLD) and current month has residual ≥ 1.5
• Sustained dips: Tag entire sequence if count_original < DIP_THRESHOLD × count_smooth for 3+ months
• Sustained rises: Tag entire sequence if count_original > RISE_THRESHOLD × count_smooth for 3+ months
• Missing data: Tag if 2+ of past 3 months are missing or zero
• Recent tail override: Automatically tag all months in last 6 months of data

A month is assigned tagged = 1 if any of the above conditions are met. Tagged records are saved in M3_chartout.csv and passed to the disruption analysis.

Step 1: Data Preparation¶

• The M3_chartout dataset is merged with the main dataset to integrate the tagged variable, which identifies flagged disruptions.
• The lowest available geographic level (lowest_geo_level) is identified for clustering, based on the highest-resolution admin_area_* column available.

Step 2: National-Level Regression¶

For each indicator_common_id, estimate the national-level model with errors clustered at district level.

• A panel regression model is applied at the country-wide level, estimating the expected service volume (expect_admin_area_1) for each indicator.
• The model controls for long-term trends and seasonal patterns in service utilization.
• When a disruption (tagged = 1) is identified, predicted service volumes are adjusted by removing the estimated disruption effect to isolate its impact.

Step 3: Intermediate Subnational-Level Regression¶

For each indicator_common_id × admin_area_2 combination, subnational models are estimated, with standard errors clustered at a lower administrative level.

• A fixed-effects panel regression model is applied at an intermediate subnational level, estimating expected service volumes (expect_admin_area_2) while accounting for time-invariant geographic characteristics.
• The model controls for historical trends and seasonality.
• When a disruption is identified, predicted volumes are adjusted to isolate the disruption effect.

Step 4: Fine Subnational-Level Regression (if enabled)¶

For each indicator_common_id × admin_area_3 combination, subnational models are estimated, with standard errors clustered at a finer administrative level.

• A fixed-effects panel regression model is applied at a fine subnational level, estimating expected service volumes (expect_admin_area_3).
• The model controls for historical trends and seasonality.
• When a disruption is identified, predicted volumes are adjusted to isolate the disruption effect.

Step 5: Prepare Outputs for Visualization¶

Once expected values have been calculated for each level (country, province, district), the pipeline compares predicted and actual values to assess the magnitude of disruption.

For each month and indicator, the pipeline calculates:

• Absolute and percentage difference between predicted and actual values:

• A configurable threshold parameter DIFFPERCENT (default: 10) is used to determine when a disruption is significant.

  If the percentage difference exceeds ±10%, the expected (predicted) value is retained and used for plotting and summary statistics. Otherwise, the actual observed value is used.

  This ensures that minor fluctuations do not lead to artificial disruptions in the visualization, while meaningful deviations are preserved.

• The final adjusted value for plotting is stored in a field such as count_expected_if_above_diff_threshold.

  This value reflects either: - The predicted count (if deviation > threshold), or - The actual count (if within acceptable range).

This logic is applied consistently across all admin levels. These adjusted values are then exported as part of the final output files for each level.

# Set working directory
setwd("/path/to/module/directory")

# Load required libraries
library(data.table)
library(lubridate)
library(zoo)
library(MASS)
library(fixest)
library(stringr)
library(dplyr)
library(tidyr)

# Configure country
COUNTRY_ISO3 <- "SLE"
PROJECT_DATA_HMIS <- "hmis_SLE.csv"

# Use default settings (admin_area_2 level analysis)
RUN_DISTRICT_MODEL <- FALSE
RUN_ADMIN_AREA_4_ANALYSIS <- FALSE

# Run the module
source("03_module_service_utilization.R")

With default settings, the module runs control chart analysis at admin_area_2 level and produces disruption estimates for national and regional levels.

# Make disruption detection more sensitive (lower thresholds)
MADS_THRESHOLD <- 1.0        # Flag at 1 MAD (default: 1.5)
DIP_THRESHOLD <- 0.95        # Flag if <95% of expected (default: 0.90)
SMOOTH_K <- 5                # Smaller smoothing window (default: 7)

# Make disruption detection less sensitive (higher thresholds)
MADS_THRESHOLD <- 2.0        # Flag only at 2 MADs
DIP_THRESHOLD <- 0.80        # Flag only if <80% of expected
SMOOTH_K <- 9                # Larger smoothing window

source("03_module_service_utilization.R")

Use case: Adjust sensitivity based on data quality. Noisier data may require less sensitive thresholds to avoid false positives.

# Enable district-level analysis (slower but more detailed)
RUN_DISTRICT_MODEL <- TRUE
RUN_ADMIN_AREA_4_ANALYSIS <- FALSE

source("03_module_service_utilization.R")

Use case: When district-level disruption patterns are needed for sub-national program planning.

Note: District-level analysis increases runtime substantially. For large countries, consider running overnight.

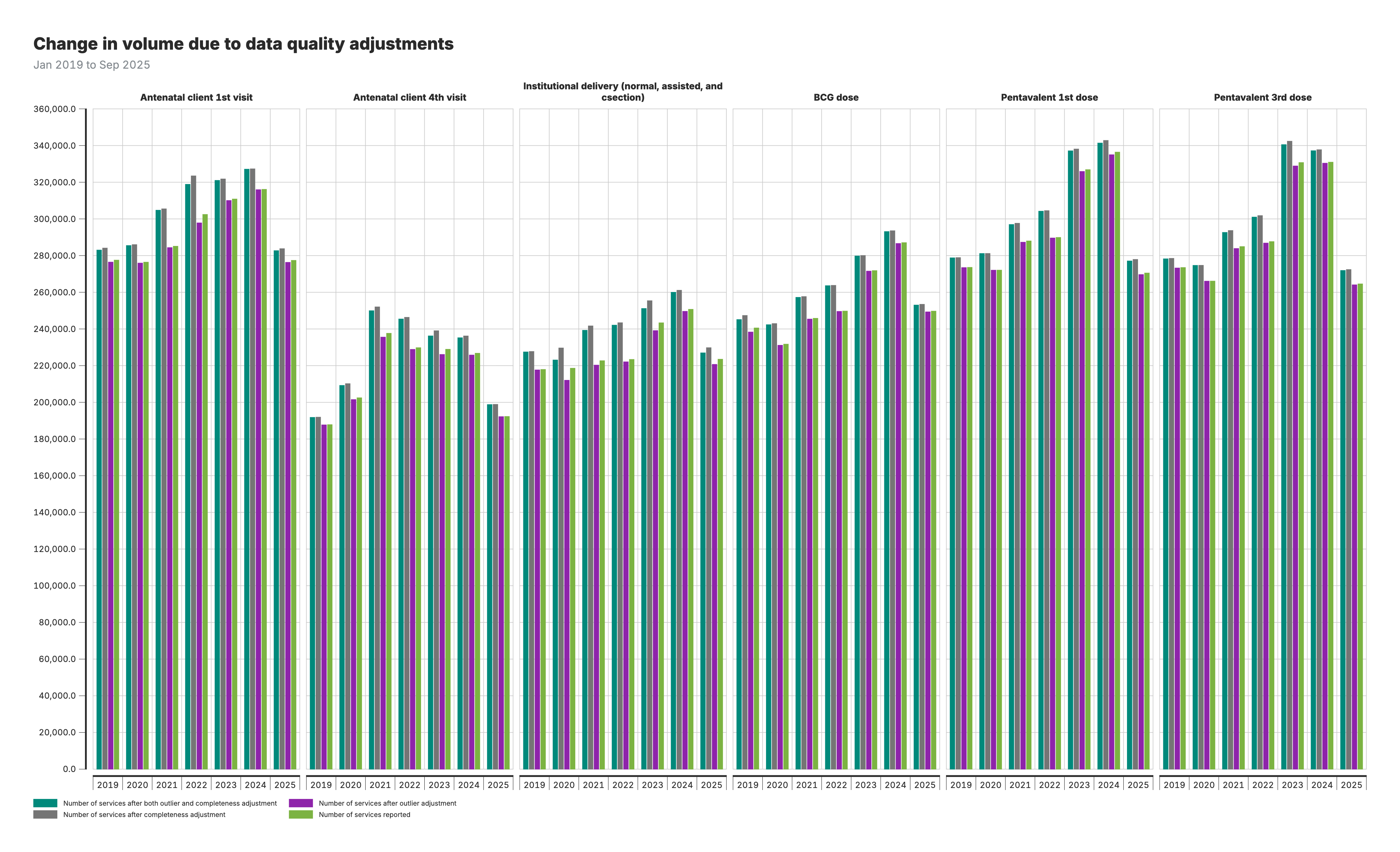

# Use unadjusted data for sensitivity analysis
SELECTEDCOUNT <- "count_final_none"
VISUALIZATIONCOUNT <- "count_final_none"

# Use outlier-adjusted only
SELECTEDCOUNT <- "count_final_outliers"
VISUALIZATIONCOUNT <- "count_final_outliers"

# Use fully adjusted data (default)
SELECTEDCOUNT <- "count_final_both"
VISUALIZATIONCOUNT <- "count_final_both"

source("03_module_service_utilization.R")

Use case: Compare disruption estimates across different data quality adjustment scenarios.

# Reduce batch sizes for memory-constrained environments
BATCH_SIZE_CC <- 50      # Control chart batches (default: 100)
BATCH_SIZE_IND <- 3      # Indicator batches (default: 5)
BATCH_SIZE_PROV <- 10    # Province batches (default: 20)
BATCH_SIZE_DIST <- 10    # District batches (default: 15)

# Disable memory-intensive analyses
RUN_DISTRICT_MODEL <- FALSE
RUN_ADMIN_AREA_4_ANALYSIS <- FALSE

source("03_module_service_utilization.R")

Use case: Running on machines with limited RAM (<8GB).

Issue: Script crashes with "out of memory" error¶

Solutions:

• Reduce batch sizes (e.g., BATCH_SIZE_IND <- 3)
• Set RUN_DISTRICT_MODEL <- FALSE
• Set RUN_ADMIN_AREA_4_ANALYSIS <- FALSE
• Close other applications
• Run on machine with more RAM

Issue: Warning "model failed to converge"¶

Explanation: Robust regression didn't fully converge within 100 iterations

Impact: Usually minimal - partial convergence often sufficient

Solutions:

• Check data quality for that panel
• Increase maxit parameter in rlm() call (line 229, 247)
• Generally safe to ignore if only a few panels affected

Issue: Many empty rows in output files¶

Explanation: Insufficient data for certain indicator-geography combinations

Solutions:

• Expected behavior for sparse indicators
• Filter outputs to non-missing values
• Consider aggregating to higher geographic level

Issue: All recent months flagged as disruptions¶

Explanation: Automatic flagging of last 6 months

Purpose: Ensures recent trends reviewed even without strong statistical evidence

Solutions:

• Expected behavior, not a bug
• Review recent months manually
• Adjust last_6_months logic if needed (line 333)

Issue: tagged variable dropped from regression¶

Message: Variable automatically set to 0

Explanation: No variation in tagged within that panel (all 0 or all 1)

Solutions:

• Expected in panels with no disruptions or constant disruption
• Not an error - disruption effect correctly set to 0

Issue: Temporary files remain after run¶

Cause: Script crashed before cleanup

Solutions:

• Delete manually: M3_temp_*.csv
• Or re-run script (automatic cleanup at start)

Issue: Very different results at different geographic levels¶

Explanation: Different geographic aggregation captures different patterns

Example: National trend may be stable while some districts have large disruptions

Solutions:

• Expected behavior - not a bug
• Use appropriate level for your research question
• Cross-check patterns across levels for robustness

Disruption effects (b_admin_area_*):

• Negative values indicate service volume shortfalls during disrupted periods
• Positive values indicate service volume surpluses during disrupted periods
• Values closer to zero indicate smaller disruption impacts

P-values (p_admin_area_*):

• Values < 0.05 suggest statistically significant disruptions
• Values > 0.05 may indicate normal variation rather than true disruptions

Trend coefficients (b_trend_admin_area_*):

• Positive values indicate increasing service utilization over time
• Negative values indicate declining service utilization over time
• Values near zero indicate stable utilization patterns

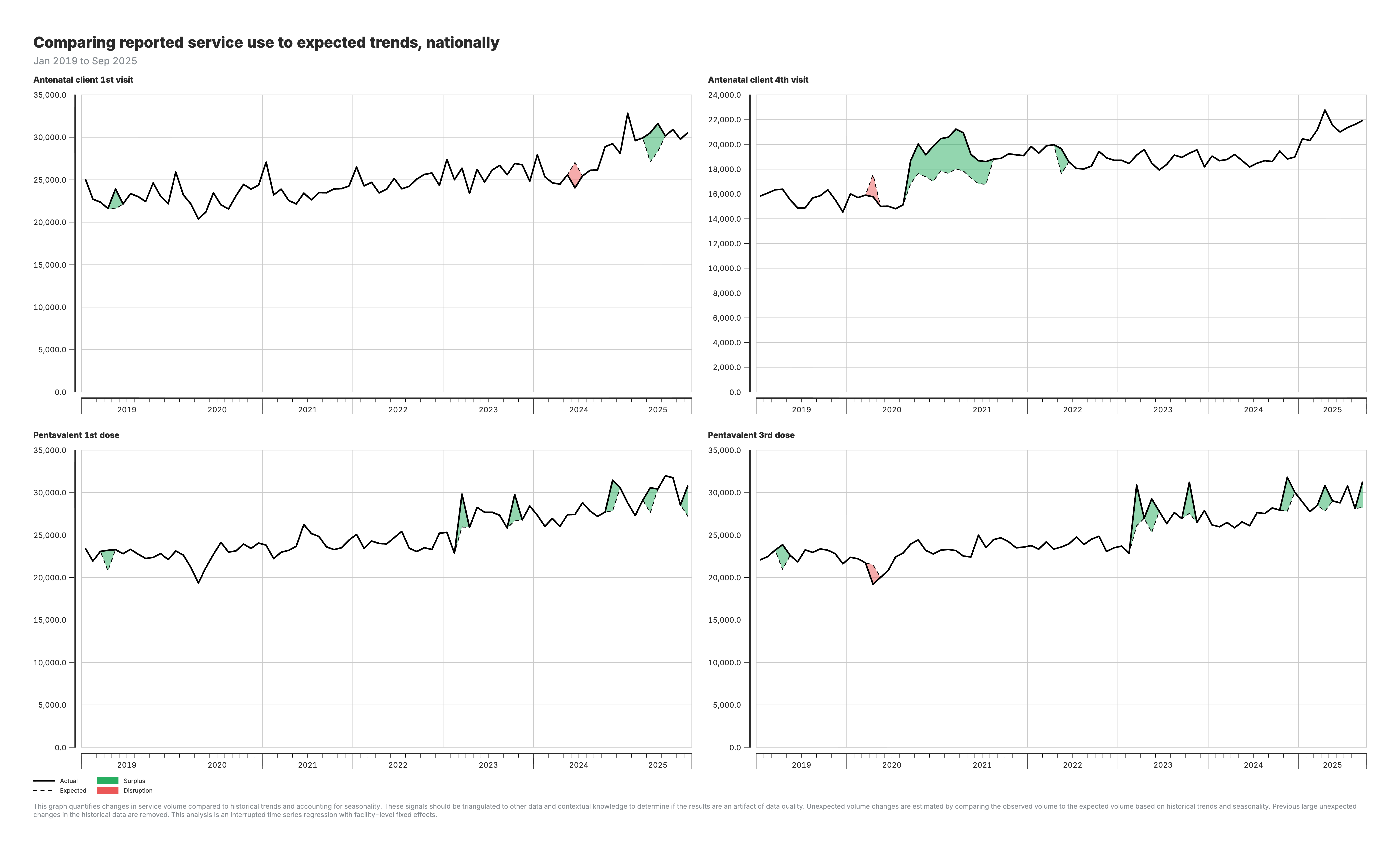

For quick overviews:

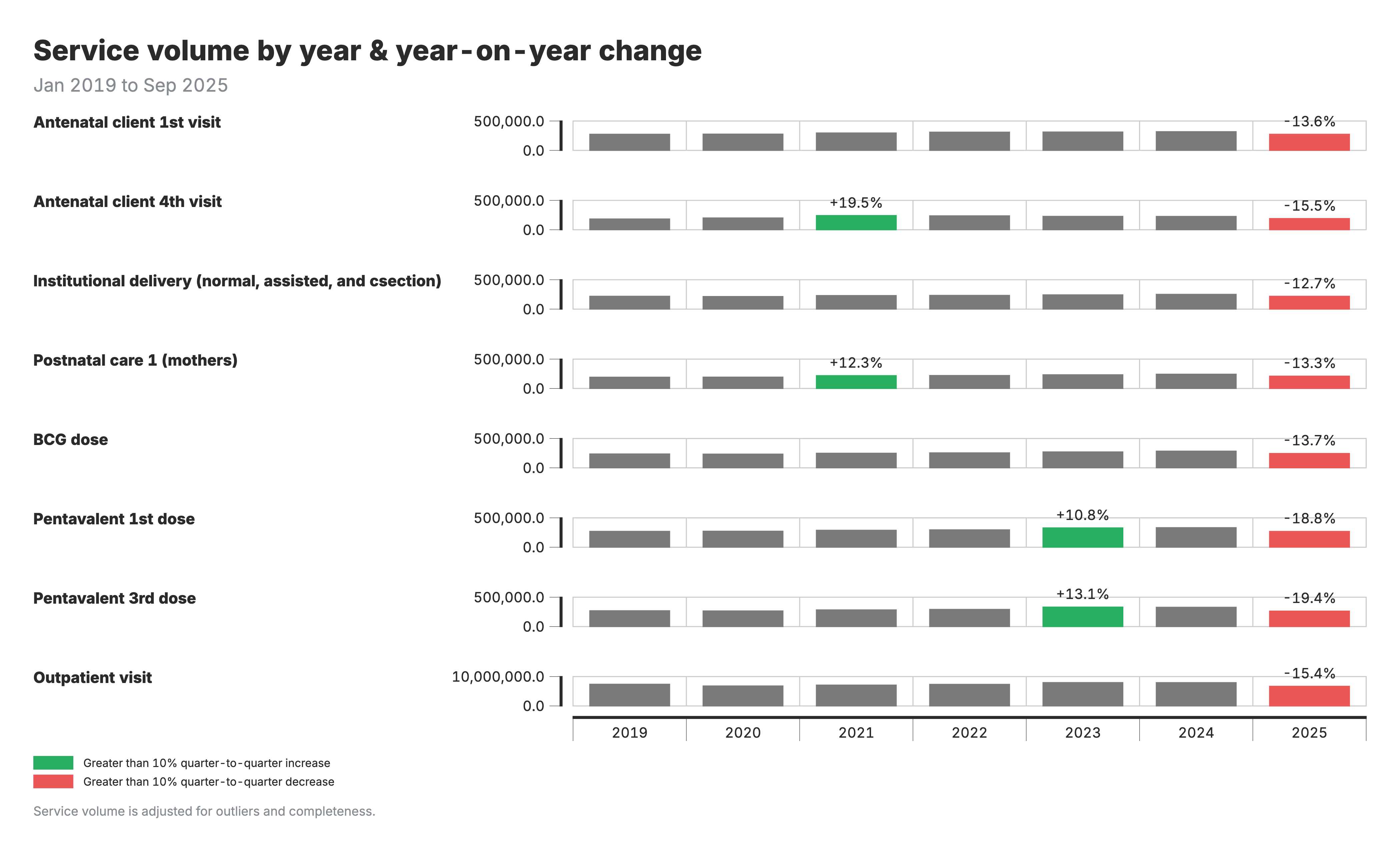

• Start with year-over-year heatmaps to identify areas/indicators with notable changes
• Use control charts for indicators with suspected disruptions
• Focus on high-volume indicators where patterns are more reliable

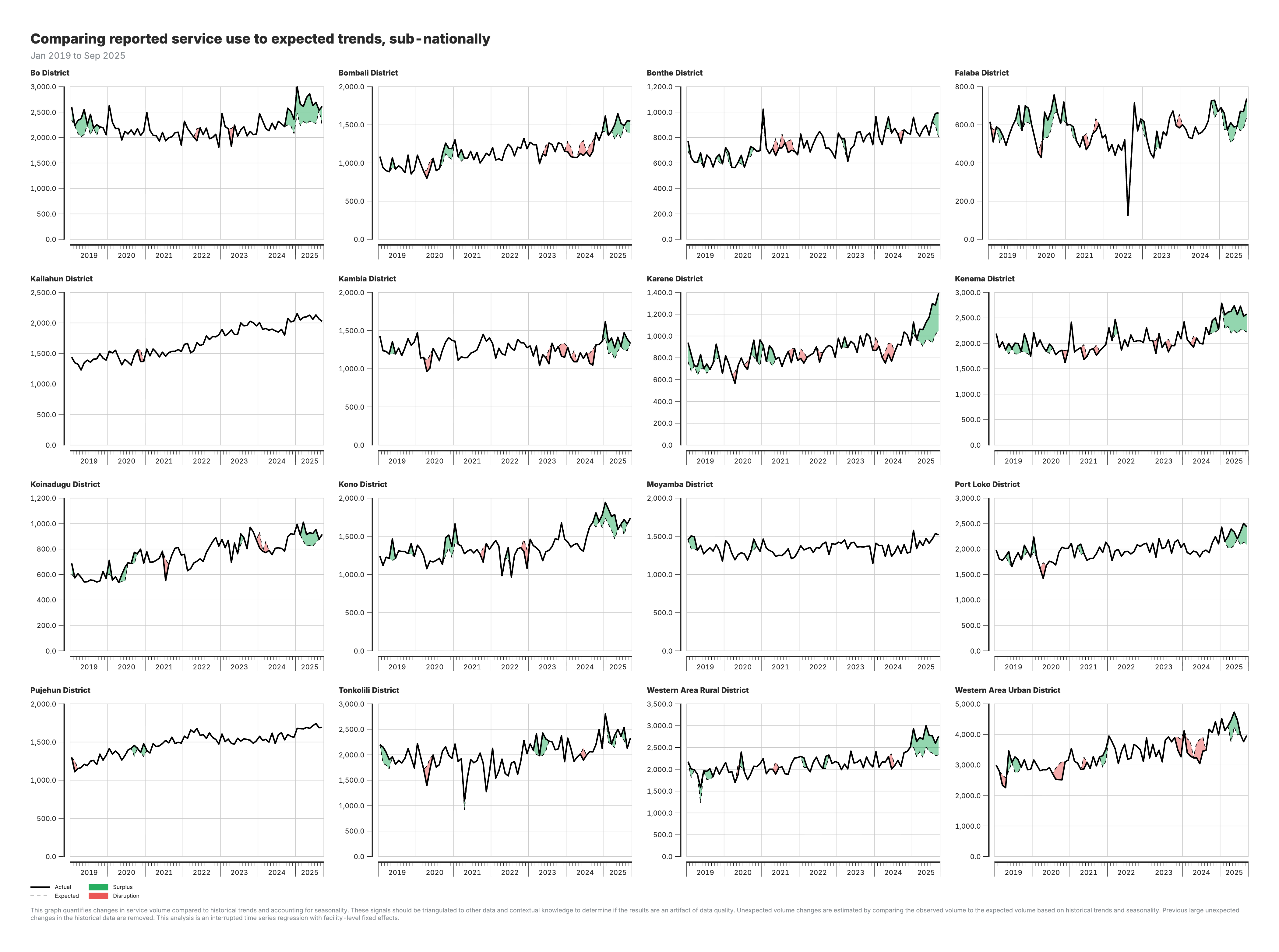

For subnational analysis:

• Province-level provides reliable patterns with sufficient data volume
• District-level useful for identifying local issues but patterns may be noisier
• Cross-check district patterns against provincial trends for consistency

For time-based analysis:

• Recent periods (last 6 months) may show preliminary patterns that could change
• Look for sustained changes (3+ consecutive months) rather than single-month spikes
• Consider known events (policy changes, campaigns, strikes) when interpreting

Statistical limitations:

• Disruption detection works best with 2+ years of historical data
• Low-volume indicators may show high percentage changes from small absolute changes
• Seasonal patterns require at least 12 months of data to model accurately

Interpretation caveats:

• Detected disruptions require contextual investigation (not all are problematic)
• Positive disruptions (surpluses) may reflect campaigns, catch-up, or data issues
• Geographic patterns affected by facility distribution and reporting rates

Data requirements:

• Results depend on quality of completeness and outlier adjustments from earlier modules
• Missing geographic identifiers will reduce coverage of subnational analysis
