Data quality assessment (DQA)¶

# Country identifier
COUNTRY_ISO3 <- "GIN"  # ISO3 country code

# Geographic level for consistency analysis
GEOLEVEL <- "admin_area_3"  # Admin level (1=national, 2=region, 3=district, etc.)

The GEOLEVEL parameter determines the aggregation level for consistency analysis. Lower administrative levels (3-4) capture local patterns but may have sparse data. Higher levels (2) provide more stable estimates but may mask local inconsistencies.

# Proportion threshold for outlier detection
OUTLIER_PROPORTION_THRESHOLD <- 0.8  # Flag if single month > 80% of annual total

# Minimum count to consider for outlier flagging
MINIMUM_COUNT_THRESHOLD <- 100  # Only flag outliers with count >= 100

# Number of Median Absolute Deviations for statistical outlier detection
MADS <- 10  # Flag if value > 10 MADs from median

Tuning guidance: - More sensitive detection: Lower OUTLIER_PROPORTION_THRESHOLD to 0.6-0.7, reduce MADS to 8 - Less sensitive detection: Increase OUTLIER_PROPORTION_THRESHOLD to 0.9, increase MADS to 12-15 - Small facilities: Lower MINIMUM_COUNT_THRESHOLD to 50 - Large facilities only: Increase MINIMUM_COUNT_THRESHOLD to 200+

# Core indicators used for DQA scoring
DQA_INDICATORS <- c("penta1", "anc1", "opd")

# Consistency pairs to evaluate
CONSISTENCY_PAIRS_USED <- c("penta", "anc")

Standard indicator sets: - Maternal-child focus: c("anc1", "anc4", "delivery", "penta1", "penta3") - Immunization focus: c("bcg", "penta1", "penta3", "measles1") - Comprehensive: c("penta1", "anc1", "opd", "delivery", "pnc1")

all_consistency_ranges <- list(
  pair_penta    = c(lower = 0.95, upper = Inf),  # Penta1 >= 0.95 * Penta3
  pair_anc      = c(lower = 0.95, upper = Inf),  # ANC1 >= 0.95 * ANC4
  pair_delivery = c(lower = 0.7, upper = 1.3),   # 0.7 <= BCG/Delivery <= 1.3
  pair_malaria  = c(lower = 0.9, upper = 1.1)    # Malaria indicators within 10%
)

The ranges reflect programmatic expectations. For example, ANC1 should always be at least 95% of ANC4 (more women start care than complete four visits). The 5% tolerance accounts for data entry variations. BCG, as a birth dose vaccine, should approximately equal facility deliveries, with 30% tolerance for variation.

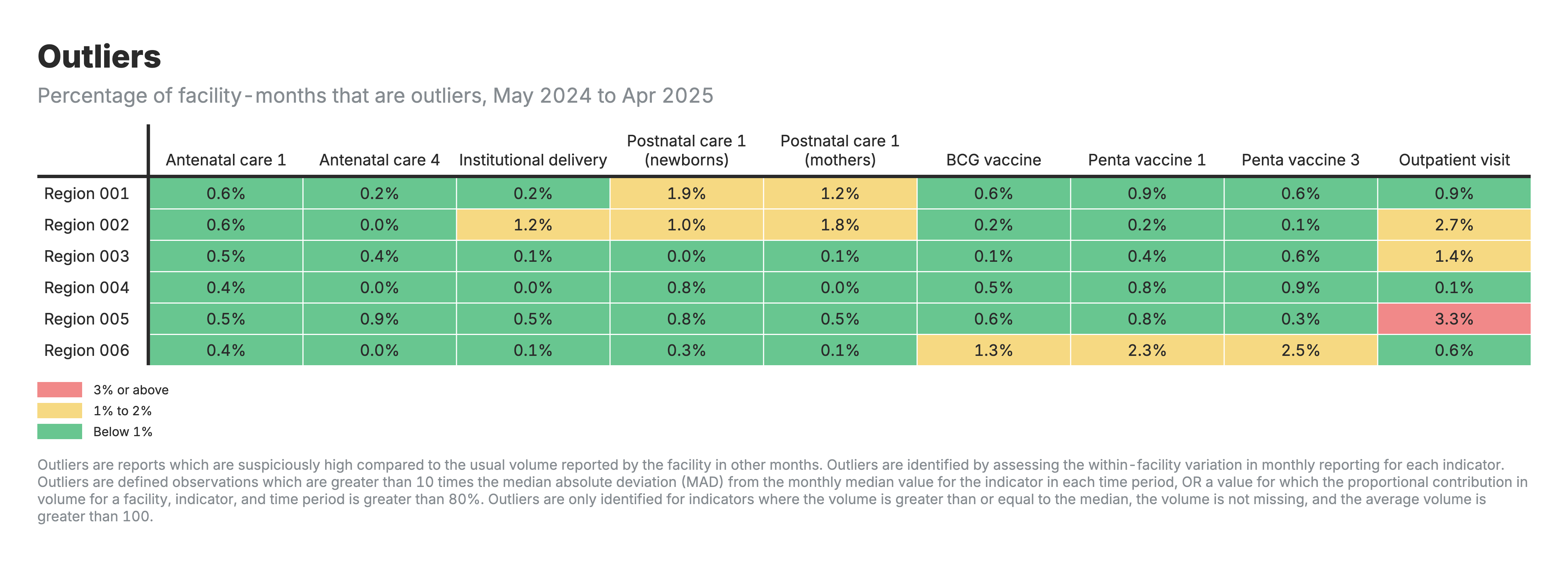

Purpose: Quick reference list of only the observations flagged as outliers

Columns:

• facility_id: Facility identifier
• admin_area_[2-8]: Geographic areas (dynamically included based on data)
• indicator_common_id: Health indicator name
• period_id: Time period (YYYYMM)
• count: Reported service volume

Use case: Data managers reviewing specific outliers for investigation or correction

Purpose: Complete dataset with outlier flags for all facility-indicator-period combinations

Columns:

• facility_id: Facility identifier
• admin_area_[2-8]: Geographic areas (dynamically included based on data)
• period_id: Time period (YYYYMM)
• indicator_common_id: Health indicator name
• outlier_flag: Final combined outlier flag (0 = not outlier, 1 = outlier)

Use case:

• Input for Module 2 (Data Quality Adjustments)
• Statistical analysis of outlier patterns
• Generating visualizations of outlier prevalence

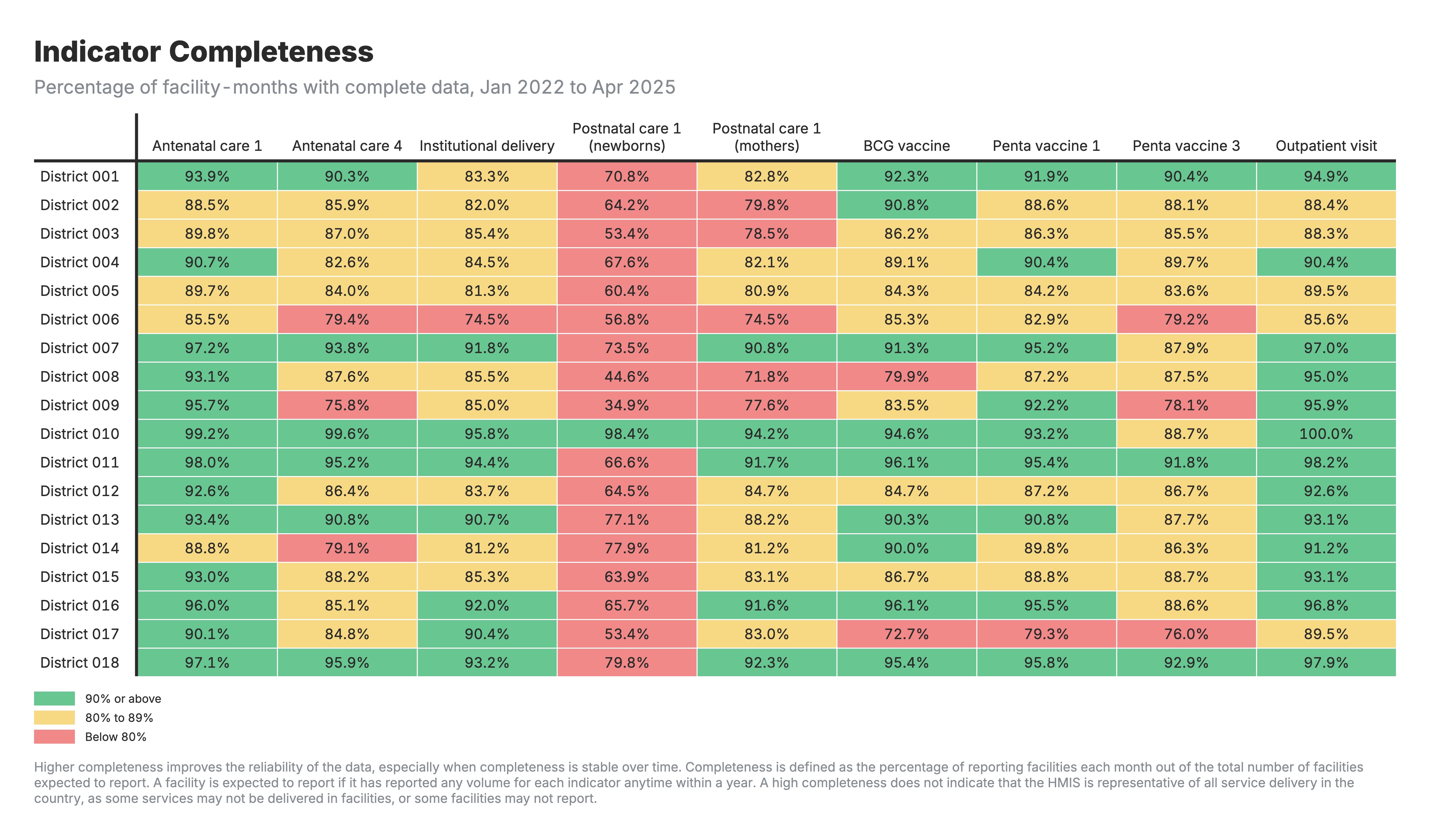

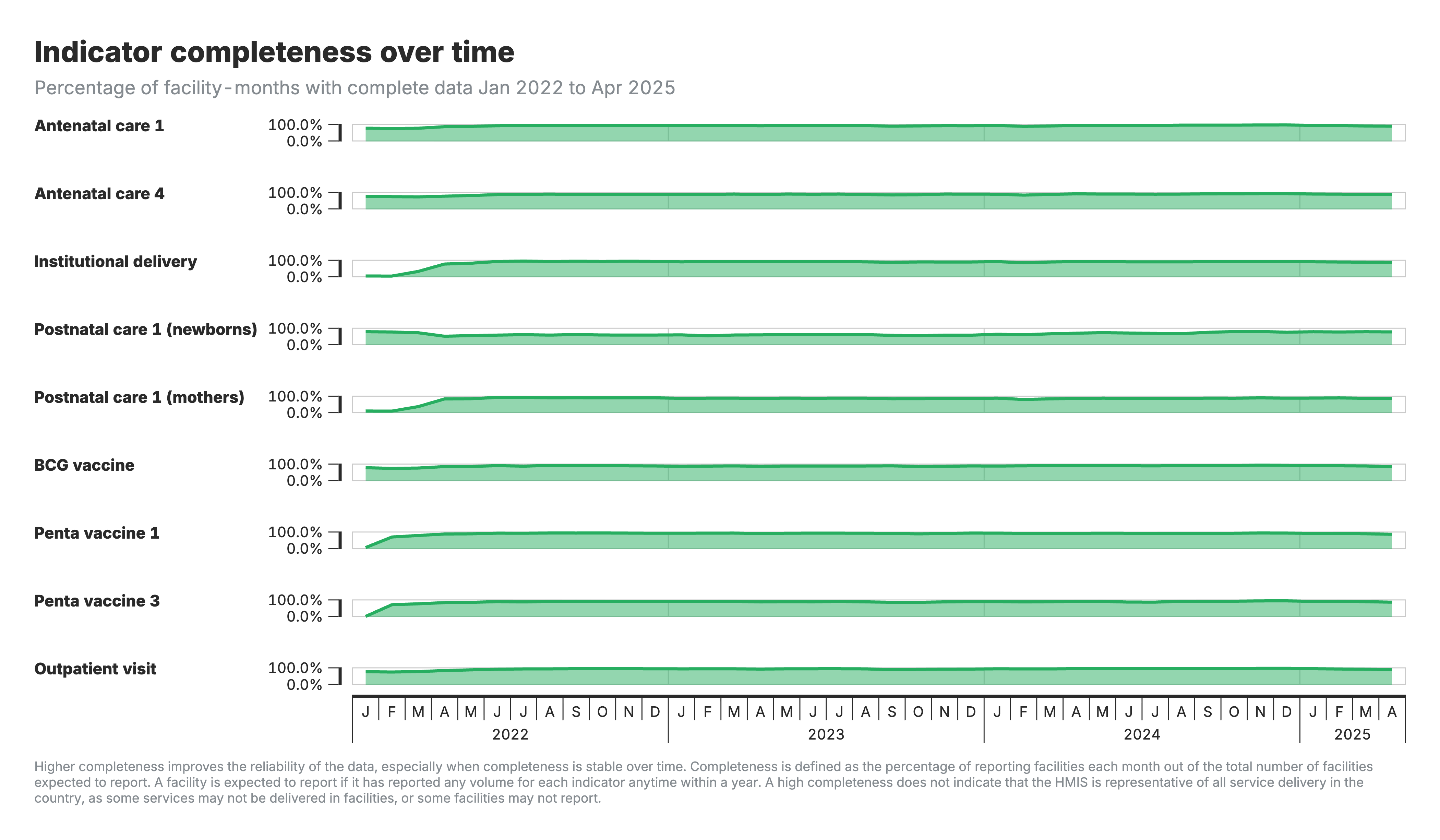

Purpose: Completeness flags for all facility-indicator-period combinations, including explicitly created records for missing months

Columns:

• facility_id: Facility identifier
• admin_area_[2-8]: Geographic areas (dynamically included based on data)
• indicator_common_id: Health indicator name
• period_id: Time period (YYYYMM)
• completeness_flag: 0=Incomplete (missing), 1=Complete (reported)

Special features:

• Contains explicit rows for non-reporting months
• Inactive periods (6+ months at start/end with completeness_flag=2) excluded from export
• Full time series for each facility-indicator combination

Use case:

• Calculating completeness percentages
• Identifying reporting gaps
• Trend analysis of reporting behavior

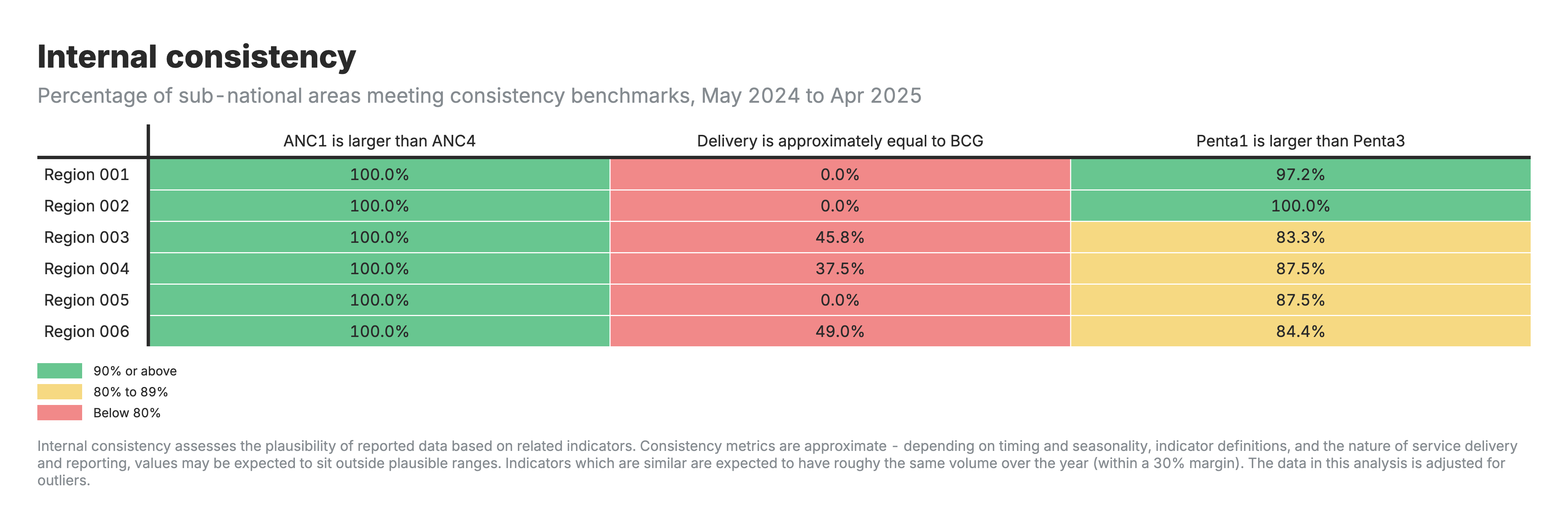

Purpose: Consistency flags calculated at the specified geographic level (e.g., district)

Columns:

• admin_area_[2-8]: Geographic identifiers up to specified GEOLEVEL (dynamically included based on data)
• period_id: Time period (YYYYMM)
• ratio_type: Name of consistency pair (e.g., "pair_penta", "pair_anc")
• sconsistency: Binary flag (1=consistent, 0=inconsistent, NA=cannot calculate)

Format: Long format with one row per geographic area-period-ratio type

Use case:

• Understanding district-level service delivery patterns
• Identifying geographic areas with consistency issues
• Creating consistency heatmaps by zone

Purpose: Geographic consistency results expanded to facility level

Columns:

• facility_id: Facility identifier
• admin_area_[2-8]: Geographic areas (dynamically included based on data)
• period_id: Time period (YYYYMM)
• ratio_type: Name of consistency pair (e.g., "pair_penta", "pair_anc")
• sconsistency: Binary flag (1=consistent, 0=inconsistent, NA=cannot calculate)

Format: Long format with one row per facility-period-ratio type

Use case:

• Input for DQA scoring
• Merging consistency flags with facility-level analyses
• Facility-specific quality reports

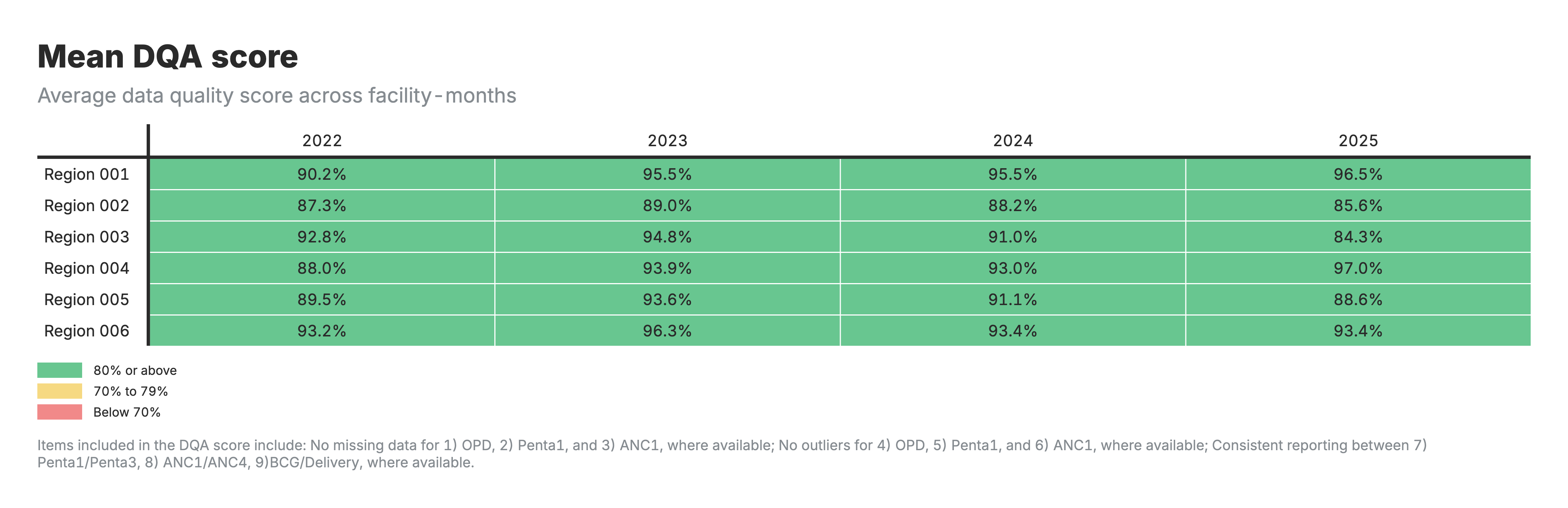

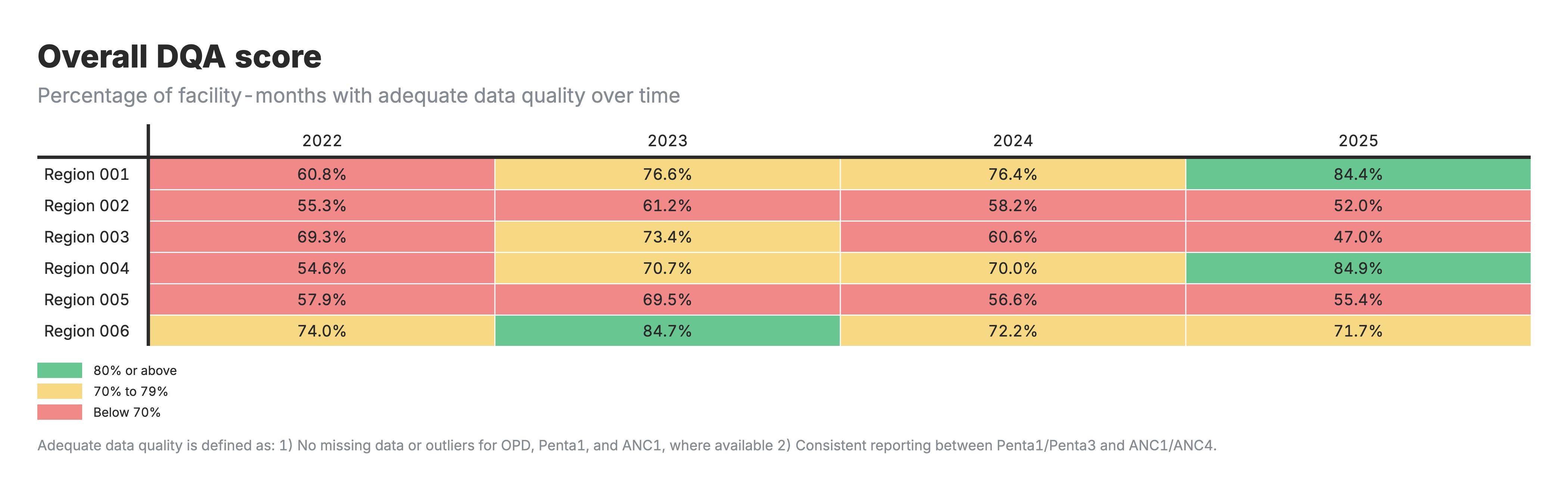

Purpose: Composite data quality scores by facility and time period

Columns:

• facility_id: Facility identifier
• admin_area_[2-8]: Geographic areas (dynamically included based on data)
• period_id: Time period (YYYYMM)
• dqa_mean: Average of component scores (0-1)
• dqa_score: Binary overall pass/fail (1 = all checks pass; 0 = any check failed)

Use case:

• Filtering data for subsequent modules (e.g., only use facility-months with dqa_score=1)
• Tracking data quality trends over time
• Identifying facilities needing data quality improvement support

Signature: load_and_preprocess_data(file_path)

Purpose: Loads HMIS data and prepares it for analysis by creating necessary date fields and composite indicators

Parameters:

• file_path (character): Path to HMIS CSV file

Returns: List containing:

• data: Preprocessed dataframe with date field added
• geo_cols: Vector of detected geographic column names

Process: 1. Reads CSV file with HMIS data 2. Converts period_id (YYYYMM format) to Date objects for temporal ordering 3. Detects all administrative area columns (admin_area_1 through admin_area_8) 4. Creates composite malaria indicator if component indicators exist: - Combines rdt_positive + micro_positive into rdt_positive_plus_micro - This composite is used for malaria consistency checks

Example:

inputs <- load_and_preprocess_data("hmis_ISO3.csv")
data <- inputs$data
geo_cols <- inputs$geo_cols

Signature: validate_consistency_pairs(consistency_params, data)

Purpose: Validates that required indicator pairs exist in the dataset before running consistency analysis

Parameters:

• consistency_params: List containing consistency_pairs and consistency_ranges
• data: The HMIS dataset

Returns: Updated consistency_params with only valid pairs (empty list if no valid pairs)

Process: 1. Checks which indicators are available in the dataset 2. Removes consistency pairs where one or both indicators are missing 3. Issues warnings about removed pairs 4. Returns empty list if no valid pairs remain

Example output:

Warning: Skipping pair_delivery - indicator 'delivery' not found in data
Warning: Skipping pair_malaria - indicator 'rdt_positive_plus_micro' not found in data
Remaining consistency pairs: pair_penta, pair_anc

Signature: outlier_analysis(data, geo_cols, outlier_params)

Purpose: Identifies statistical outliers in facility service volumes using dual detection methods

Parameters:

• data: HMIS data with facility_id, indicator_common_id, period_id, count
• geo_cols: Vector of geographic column names
• outlier_params: List containing:
• outlier_pc_threshold: Proportion threshold (default 0.8)
• count_threshold: Minimum count threshold (default 100)

Returns: Dataframe with outlier flags and diagnostic metrics for each facility-indicator-period

Calculated fields:

• median_volume: Median count by facility-indicator
• mad_volume: MAD calculated on values >= median
• mad_residual: Standardized residual (|count - median| / MAD)
• outlier_mad: Binary flag (1 if mad_residual > MADS)
• pc: Proportional contribution to annual total
• outlier_pc: Binary flag (1 if pc > threshold)
• outlier_flag: Final flag (1 if either method flags AND count > minimum threshold)

Algorithm steps:

Step 1: Calculate median volume for each facility-indicator combination

Step 2: Compute MAD using only values equal to or above the median - Avoids bias from facilities with many low-volume months - Standardizes residuals by dividing (count - median) by MAD - Flags outlier_mad = 1 if mad_residual > MADS parameter

Step 3: Calculate proportional contribution - For each facility-indicator-year, sum total annual count - Calculate pc = count / annual_total - Flags outlier_pc = 1 if pc > OUTLIER_PROPORTION_THRESHOLD

Step 4: Combine flags - Final outlier_flag = 1 if (outlier_mad = 1 OR outlier_pc = 1) AND count > MINIMUM_COUNT_THRESHOLD - The threshold (default 100) ensures only substantial volumes are flagged, avoiding false positives at low-volume facilities

Signature: process_completeness(outlier_data_main)

Purpose: Main orchestration function that generates complete time series and assigns completeness flags for all indicators

Parameters:

• outlier_data_main: Outlier analysis results (contains all facility-indicator-period combinations with counts)

Returns: Long format dataset with completeness flags for all facility-indicator-period combinations

Process:

1. Identifies first and last reporting period for each indicator globally
2. Calls generate_full_series_per_indicator() for each indicator
3. Applies completeness tagging logic (complete/incomplete/inactive)
4. Merges with geographic metadata
5. Combines results across all indicators
6. Removes inactive periods (completeness_flag = 2)

Output structure:

• Explicit rows for both reported and non-reported periods
• Completeness flag: 0 (incomplete), 1 (complete), 2 (inactive - removed)
• Full time series from first to last reporting period per indicator

Signature: generate_full_series_per_indicator(outlier_data, indicator_id, timeframe)

Purpose: Creates a complete monthly time series for a specific indicator, filling in gaps where facilities did not report

Parameters:

• outlier_data: data.table with outlier results
• indicator_id: Specific indicator to process (e.g., "penta1")
• timeframe: Data table with first_pid and last_pid for each indicator

Returns: Complete time series with explicit rows for both reported and non-reported periods

Process:

1. Subsets data to specific indicator
2. Generates monthly sequence from first to last period_id for that indicator
3. Creates complete facility-period grid (all facilities × all months) using CJ() cross join
4. Merges with actual reported data
5. Missing counts indicate non-reporting periods
6. Applies inactive detection algorithm

Inactive detection algorithm:

# A facility is flagged inactive (offline_flag = 2) if:
# 1. Missing 6+ consecutive months BEFORE first report, OR
# 2. Missing 6+ consecutive months AFTER last report

offline_flag := fifelse(
  (missing_group == 1 & missing_count >= 6 & !first_report_idx) |
  (missing_group == max(missing_group) & missing_count >= 6 & !last_report_idx),
  2L, 0L
)

Example timeline:

Facility A reporting pattern for indicator "penta1":
Period:  202001 202002 202003 202004 202005 202006 202007 202008 202009 202010
Count:   NA     NA     NA     NA     50     30     NA     NA     40     35
Flag:    2      2      2      2      1      1      0      0      1      1
         [----Inactive----] [---Active period with gaps---]

Explanation:
- First 4 months: Inactive (6+ months missing before first report at 202005)
- 202005-202006: Complete (reported)
- 202007-202008: Incomplete (gaps in active period)
- 202009-202010: Complete (reported)

Signature: geo_consistency_analysis(data, geo_cols, geo_level, consistency_params)

Purpose: Calculates consistency ratios at the geographic level to account for patients seeking services across multiple facilities within a district/ward

Parameters:

• data: Outlier data (with outliers already flagged)
• geo_cols: Vector of geographic column names
• geo_level: Geographic level for aggregation (e.g., "admin_area_3")
• consistency_params: List with consistency_pairs and consistency_ranges

Returns: Long format dataframe with geographic-level consistency results

Process:

1. Excludes outliers (sets count to NA where outlier_flag = 1)
2. Aggregates data to specified geographic level by period (sums across facilities)
3. Reshapes to wide format (one column per indicator)
4. Calculates ratio for each indicator pair
5. Flags consistency based on predefined ranges

Output columns:

• Geographic identifiers (up to specified level)
• period_id: Time period
• ratio_type: Name of the consistency pair (e.g., "pair_penta")
• consistency_ratio: Calculated ratio value
• sconsistency: Binary flag (1 = consistent, 0 = inconsistent, NA = cannot calculate)

Example output:

admin_area_2  admin_area_3  period_id  ratio_type    consistency_ratio  sconsistency
District_A    Ward_1        202401     pair_penta    1.05               1
District_A    Ward_1        202401     pair_anc      0.88               0
District_A    Ward_2        202401     pair_penta    0.97               1

Rationale: Measuring consistency at the geographic level accounts for patient movement between facilities and provides a more accurate picture of service utilization patterns across a community.

Signature: expand_geo_consistency_to_facilities(facility_metadata, geo_consistency_results, geo_level)

Purpose: Assigns geographic-level consistency results to individual facilities

Parameters:

• facility_metadata: Facility list with geographic assignments
• geo_consistency_results: Output from geo_consistency_analysis()
• geo_level: Geographic level used in consistency analysis

Returns: Facility-level dataset with consistency flags

Process:

• Extracts facility list with their geographic assignments
• Performs left join to replicate geo-level consistency scores to all facilities in that area
• Uses many-to-many relationship to handle multiple periods and ratio types

Rationale: Since consistency is measured at the geographic level (accounting for patient movement between facilities), all facilities within the same district/ward receive the same consistency scores.

Signature: dqa_with_consistency(completeness_data, consistency_data, outlier_data, geo_cols, dqa_rules)

Purpose: Calculates comprehensive DQA scores including consistency checks when consistency pairs are available

Parameters:

• completeness_data: Output from process_completeness()
• consistency_data: Wide-format facility consistency results
• outlier_data: Output from outlier_analysis()
• geo_cols: Vector of geographic column names
• dqa_rules: List specifying required values for each dimension

DQA Rules Configuration:

dqa_rules <- list(
  completeness = 1,   # Must be complete (flag = 1)
  outlier_flag = 0,   # Must NOT be an outlier (flag = 0)
  sconsistency = 1    # Must be consistent (flag = 1)
)

Scoring algorithm:

1. Completeness-Outlier Score (per facility-period): - Each DQA indicator scores 0-2 points (1 for completeness + 1 for no outlier) - Maximum possible = 2 × number of DQA indicators - Score = Total Points / Maximum Points

2. Consistency Score (per facility-period): - Only counts pairs where both indicators exist (NA pairs excluded from denominator) - Score = Number of passing pairs / Number of available pairs - If no pairs available, score = 0

3. Mean DQA Score: - Average of completeness-outlier score and consistency score - Formula: (completeness_outlier_score + consistency_score) / 2

4. Binary DQA Score: - 1 if all checks pass (complete, no outliers, consistent) - 0 if any check fails

Handling missing indicators: The function intelligently handles cases where some consistency indicators are missing: - NA values in consistency pairs are NOT replaced with 0 - Only available pairs contribute to the denominator - This prevents penalizing facilities for indicators they do not provide

Example calculation:

Facility X in period 202401:
- DQA Indicators: penta1, anc1, opd (3 indicators)
- Completeness: All 3 complete → 3 points
- Outliers: None → 3 points
- Total: 6/6 → completeness_outlier_score = 1.0

Consistency Pairs:
- pair_penta (penta1/penta3): Pass (1)
- pair_anc (anc1/anc4): Fail (0)
- pair_delivery: NA (bcg not a DQA indicator)

Consistency calculation:
- Available pairs: 2 (penta, anc)
- Passing pairs: 1 (penta)
- consistency_score = 1/2 = 0.5

Final scores:
- dqa_mean = (1.0 + 0.5) / 2 = 0.75
- dqa_score = 0 (not all pairs passed)

Signature: dqa_without_consistency(completeness_data, outlier_data, geo_cols, dqa_rules)

Purpose: Calculates DQA scores using only completeness and outlier checks when consistency data is unavailable or no valid consistency pairs exist

When used:

• No consistency pairs defined in configuration
• All consistency pairs have missing indicators
• Dataset does not contain paired indicators

Scoring:

• Uses only completeness and outlier components
• dqa_mean = completeness_outlier_score
• dqa_score = 1 if all completeness and outlier checks pass, 0 otherwise

Output structure:

dqa_results <- data.frame(
  facility_id,
  admin_area_X,              # Dynamic geographic columns
  period_id,
  completeness_outlier_score, # Range: 0-1
  dqa_mean,                   # Range: 0-1 (equals completeness_outlier_score)
  dqa_score                   # Binary: 0 or 1
)

The MAD is a robust measure of variability that is less sensitive to outliers than standard deviation.

Standard MAD Algorithm: 1. Compute the median of the dataset 2. Calculate absolute deviations: |value - median| for each data point 3. Find the median of these absolute deviations

FASTR Modification: The module calculates MAD using only values at or above the median, making it more sensitive to high outliers while avoiding bias from facilities with many low-volume months.

Outlier degree calculation:

Outlier classification: - If MAD Residual > 10 (configurable via MADS parameter), the value is flagged as a MAD-based outlier (outlier_mad = 1) - The final outlier_flag also requires count > 100

Example:

Facility ABC, Indicator: penta1
Monthly counts: 20, 25, 22, 28, 24, 26, 150, 23, 27, 25, 21, 24

Step 1: Calculate median = 24.5
Step 2: Values >= median: 25, 28, 24.5, 26, 150, 27, 25, 24.5
Step 3: Absolute deviations from median: 0.5, 3.5, 0, 1.5, 125.5, 2.5, 0.5, 0
Step 4: MAD = median(0, 0, 0.5, 0.5, 1.5, 2.5, 3.5, 125.5) = 1.0
Step 5: For count=150: MAD residual = |150 - 24.5| / 1.0 = 125.5
Step 6: 125.5 > 10 AND 150 > 100, therefore outlier_flag = 1

This method identifies months where a single observation represents an unusually large proportion of the annual total for a facility-indicator combination.

Algorithm: 1. For each facility-indicator-year, sum the total annual count 2. Calculate the proportion: pc = monthly_count / annual_total 3. Flag as proportional outlier (outlier_pc = 1) if pc > OUTLIER_PROPORTION_THRESHOLD (default 0.8) 4. The final outlier_flag also requires count > 100

Rationale: A facility reporting 80% of its annual volume in a single month likely indicates a data entry error (e.g., cumulative reporting instead of monthly, extra digit entered).

Example:

Facility XYZ, Indicator: anc1, Year: 2024
Monthly counts: 15, 18, 12, 16, 890, 14, 17, 13, 16, 15, 14, 12
Annual total: 1052

For May (count=890):
pc = 890 / 1052 = 0.846
0.846 > 0.8 AND 890 > 100, therefore outlier_flag = 1

The module applies programmatically defined benchmarks for indicator pairs:

ANC Consistency:

Interpretation: More women should start ANC (ANC1) than complete four visits (ANC4). The ratio is expected to be ≥ 0.95, allowing up to 5% tolerance for data variations.

Penta consistency:

Interpretation: More children should receive Penta1 than complete the three-dose series (Penta3).

BCG/Delivery Consistency:

Interpretation: BCG is a birth dose vaccine, so BCG vaccinations should approximately equal facility deliveries. The wider range (±30%) accounts for infants born elsewhere receiving BCG at the facility or facility-born infants receiving BCG elsewhere.

Implementation detail: Consistency is assessed at the district/ward level (specified by GEOLEVEL) to account for patients visiting multiple facilities within their local area for different services.

For a given indicator in a given month:

Expected facilities definition: A facility is expected to report for an indicator if it has ever reported for that indicator within the analysis timeframe AND is not flagged as inactive.

Inactive facility definition: A facility is flagged as inactive for periods where it did not report for six or more consecutive months before its first report or after its last report.

Example:

District has 20 facilities that have ever reported penta1 data in 2024
In March 2024:
- 18 facilities submitted penta1 data
- 2 facilities did not submit (but are not inactive)

Completeness = 18 / 20 × 100 = 90%

Important note: A high level of completeness does not necessarily indicate that the HMIS is representative of all service delivery in the country, as some services may not be delivered in facilities or some facilities may not report. For countries where DHIS2 does not store zeros, indicator completeness may be underestimated if there are many low-volume facilities.

The DQA score combines three quality dimensions for a defined set of core indicators.

Component scores:

1. Completeness-Outlier Score:

2. Consistency Score:

3. Mean DQA Score:

4. Binary DQA Score:

Passing criteria for binary score: - ALL DQA indicators must be complete (completeness_flag = 1) - ALL DQA indicators must be free of outliers (outlier_flag = 0) - ALL available consistency pairs must pass benchmarks (sconsistency = 1)

Example calculation:

Facility 123, Period 202403
DQA Indicators: penta1, anc1, opd

Completeness: penta1=1, anc1=1, opd=1 → 3 points
Outliers: penta1=0, anc1=0, opd=0 → 3 points
Completeness-Outlier Score = 6 / (2×3) = 1.0

Consistency Pairs:
- pair_penta: 1 (pass)
- pair_anc: 1 (pass)
Consistency Score = 2 / 2 = 1.0

DQA Mean = (1.0 + 1.0) / 2 = 1.0
DQA Score = 1 (all checks passed)

# Make outlier detection more sensitive (lower thresholds)
OUTLIER_PROPORTION_THRESHOLD <- 0.6   # Flag if >60% of annual volume (was 80%)
MINIMUM_COUNT_THRESHOLD <- 50         # Consider counts >=50 (was 100)
MADS <- 8                             # Flag at 8 MADs (was 10)

# Run the module
source("01_module_data_quality_assessment.R")

Use case: Countries with generally low service volumes where the default thresholds are too conservative.

# Use district level (admin_area_2) instead of sub-district (admin_area_3)
GEOLEVEL <- "admin_area_2"

# This affects consistency analysis aggregation level
source("01_module_data_quality_assessment.R")

Use case: Sub-district level has sparse data or too few facilities per area, making district-level aggregation more stable.

# Focus DQA on maternal health indicators only
DQA_INDICATORS <- c("anc1", "anc4", "delivery", "pnc1")

# Only evaluate anc consistency pair
CONSISTENCY_PAIRS_USED <- c("anc")

source("01_module_data_quality_assessment.R")

Use case: Specialized analysis focusing on a specific service area.

Symptoms: - Console message: "No valid consistency pairs found" - M1_output_consistency_geo.csv has only headers - DQA scores calculated without consistency component

Diagnosis: Check that both indicators in each pair exist in your dataset:

# Load your data
data <- read.csv("hmis_[COUNTRY].csv")

# Check available indicators
print(unique(data$indicator_common_id))

# Compare with required pairs
# For pair_penta: need "penta1" and "penta3"
# For pair_anc: need "anc1" and "anc4"
# For pair_delivery: need "bcg" and "delivery" (or "sba")

Solutions: 1. Adjust CONSISTENCY_PAIRS_USED to only include pairs with available indicators 2. Modify indicator names in your data to match expected names 3. Accept that DQA will be calculated without consistency component

Symptoms: - Very high percentage of outlier_flag = 1 in M1_output_outliers.csv - Most observations in outlier_list.csv

Diagnosis: Your thresholds may be too sensitive for your data context.

Solutions:

1. Increase MAD threshold:

MADS <- 15  # Increase from default 10

1. Increase proportion threshold:

OUTLIER_PROPORTION_THRESHOLD <- 0.9  # Increase from 0.8

1. Increase minimum count threshold (focus on larger facilities):

MINIMUM_COUNT_THRESHOLD <- 200  # Increase from 100

1. Review the data: Check if there are genuine quality issues requiring data cleaning rather than parameter adjustment

Symptoms: - M1_output_dqa.csv is empty or has only headers - Console message: "Skipping DQA analysis - none of the required indicators found"

Diagnosis: None of the indicators specified in DQA_INDICATORS exist in your dataset.

Solution: Check which DQA indicators are missing:

# Load data
data <- read.csv("hmis_[COUNTRY].csv")

# Check which DQA indicators are missing
available_indicators <- unique(data$indicator_common_id)
missing_indicators <- setdiff(DQA_INDICATORS, available_indicators)
print(paste("Missing DQA indicators:", paste(missing_indicators, collapse=", ")))

# Available DQA indicators
available_dqa <- intersect(DQA_INDICATORS, available_indicators)
print(paste("Available DQA indicators:", paste(available_dqa, collapse=", ")))

Then update DQA_INDICATORS to include only available indicators:

DQA_INDICATORS <- c("penta1", "anc1")  # Only use what's available

Symptoms: - All consistency flags are 0 (inconsistent) - Consistency ratios are unexpectedly high or low

Diagnosis: The geographic aggregation level may be inappropriate for your data.

Investigation:

# Load geographic consistency results
geo_cons <- read.csv("M1_output_consistency_geo.csv")

# Check distribution of consistency ratios
summary(geo_cons$consistency_ratio)

# Check sample sizes at geographic level
outliers <- read.csv("M1_output_outliers.csv")
geo_summary <- outliers %>%
  group_by(admin_area_3, period_id) %>%
  summarize(
    n_facilities = n_distinct(facility_id),
    total_volume = sum(count, na.rm = TRUE)
  )
summary(geo_summary$n_facilities)

Solutions:

1. If geographic areas have very few facilities (1-2), use higher level:

GEOLEVEL <- "admin_area_2"  # Use district instead of sub-district

1. If ratios are generally below 0.95 for ANC/Penta pairs, this may indicate genuine programmatic issues (high dropout) rather than data quality problems

2. Review the consistency benchmark ranges - they may need adjustment for your context:

# Example: Allow higher dropout (lower ratio) for Penta
all_consistency_ranges$pair_penta <- c(lower = 0.85, upper = Inf)

Symptoms: - High proportion of completeness_flag = 0 in M1_output_completeness.csv

Diagnosis: This could be legitimate (poor reporting) or an artifact of how your DHIS2 stores zero values.

Investigation:

# Load completeness data
completeness <- read.csv("M1_output_completeness.csv")

# Check pattern: Are there explicit zeros or just missing values?
outliers <- read.csv("M1_output_outliers.csv")
table(is.na(outliers$count), outliers$count == 0)

# Check completeness by indicator
comp_by_indicator <- completeness %>%
  group_by(indicator_common_id) %>%
  summarize(
    pct_complete = 100 * mean(completeness_flag == 1),
    pct_incomplete = 100 * mean(completeness_flag == 0)
  )
print(comp_by_indicator)

Considerations: 1. If your DHIS2 does not store zeros, low-volume facilities may appear incomplete when they legitimately had no services to report 2. Completeness percentages should be interpreted in context - 70% completeness may be acceptable depending on the health system 3. Use the completeness_flag in subsequent modules to weight estimates appropriately

Symptoms: - Error: "Cannot open file 'hmis_[COUNTRY].csv'" - Module crashes during data loading

Solutions:

1. Check file path and working directory:

getwd()  # Verify working directory
list.files()  # Check if HMIS file is present

1. Verify file name matches PROJECT_DATA_HMIS parameter

2. Check file format (CSV, proper encoding, comma-separated)

3. Ensure required columns exist:

# After loading
names(data)  # Should include: facility_id, period_id, indicator_common_id, count

Outlier flags: - outlier_flag = 1 suggests potential data quality issues, but require investigation - Not all flagged outliers are errors (genuine service campaigns can trigger flags) - Use mad_residual and pc values to prioritize review

Completeness: - Completeness % varies by health system context - 80-90%+ is generally good, but depends on country - Trend over time more informative than absolute percentage - Low completeness for specific indicators may reflect genuine service gaps

Consistency: - sconsistency = 0 may indicate data quality issues OR programmatic performance issues (e.g., high dropout) - Requires programmatic knowledge to interpret - Geographic patterns can help distinguish systematic issues from random errors

DQA Scores: - dqa_score = 1 indicates data passed all checks, suitable for unadjusted use - dqa_score = 0 requires further investigation - dqa_mean provides nuanced view (0.75 = mostly good, 0.25 = mostly poor)

For initial assessment:

• Start with DQA summary heatmaps to identify areas/indicators with issues
• Focus on high-volume indicators (ANC1, Penta1, Delivery) which are more reliable
• Review completeness trends over time before point estimates

For deeper investigation:

• Use outlier detail files to see specific flagged values
• Cross-reference consistency issues with programmatic knowledge
• Compare patterns across adjacent geographic areas

Priority order:

1. Completeness - affects whether data represents the full picture
2. Outliers - directly distort aggregate statistics
3. Consistency - may indicate systemic issues or data entry problems

Statistical limitations:

• MAD-based outlier detection assumes roughly symmetric distributions
• Consistency thresholds (98^th percentile) may need context-specific tuning
• Completeness assessment requires accurate facility master list

Interpretation caveats:

• Not all flagged issues are errors (campaigns, outbreaks cause genuine spikes)
• Consistency failures may reflect programmatic issues, not data quality
• Geographic aggregations can mask facility-level variation

Data requirements:

• At least 6 months of data recommended for stable outlier detection
• Facility identifiers must be consistent across periods
• Missing geographic identifiers limit subnational analysis
